Thermaline Heat Exchangers

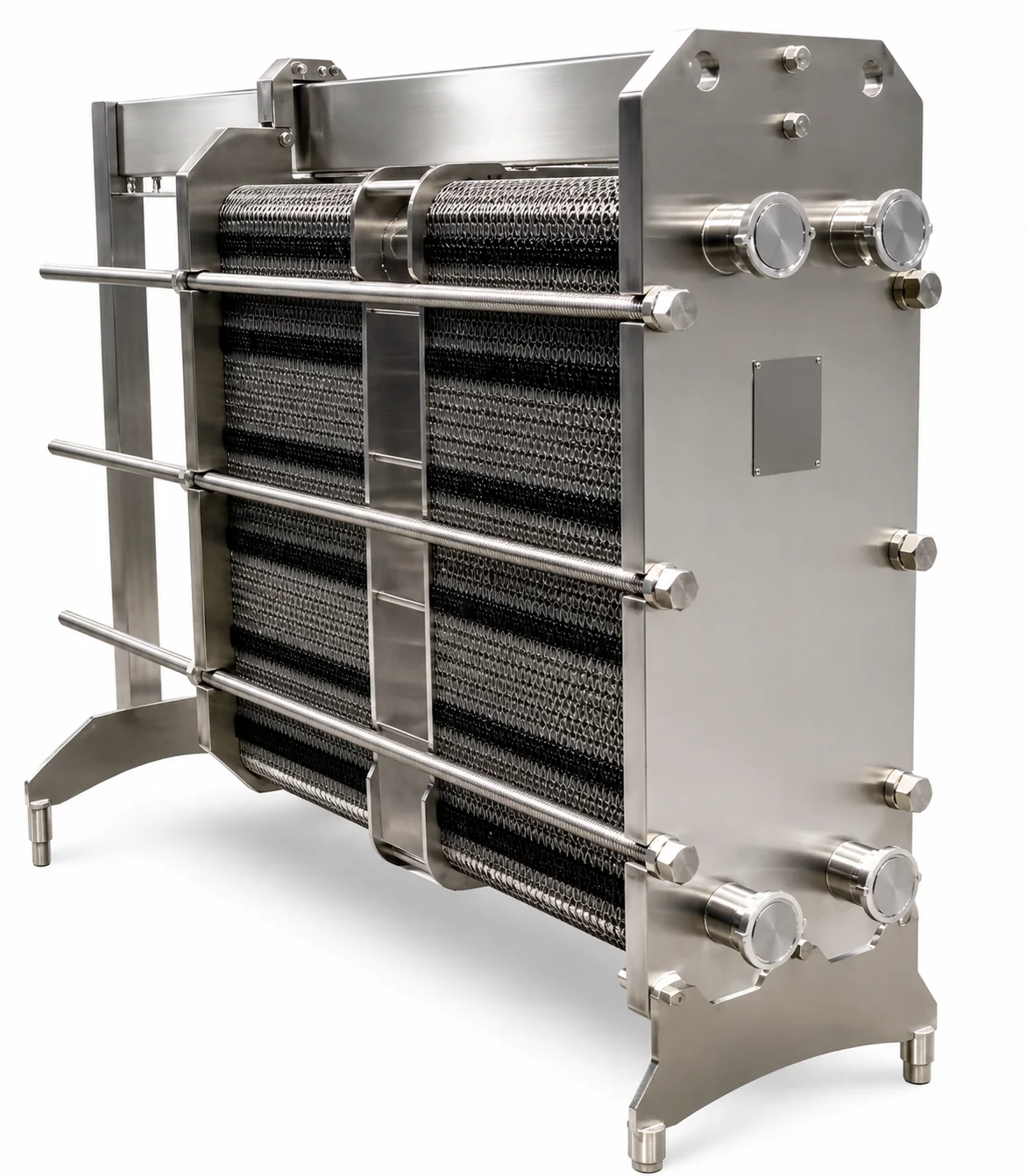

Thermaline is a US-based manufacturer (Auburn, Washington) of gasketed plate, corrugated tubular, and shell & tube heat exchangers, widely used in food, beverage, dairy, and brewery processing where sanitary design and FDA/3-A compliance are essential. Thermaline's T-series gasketed plate heat exchangers are known for features such as the patented Smart Identification System (laser-etched plate information visible even when the unit is assembled) and TagTeam automated dual-frame units. SRJ manufactures replacement plates and gaskets engineered to match the original port geometry, plate corrugation, and gasket groove profile used across the Thermaline T-series range, so units already installed in your plant can be re-plated and re-gasketed without any change to the existing frame.

Our Thermaline-compatible plates are available in stainless steel (SS304/316), and gaskets are supplied in EPDM (clip-on) and other food-grade elastomer compounds to match Thermaline's own sanitary-standard gasket fitting, depending on your process fluid and operating temperature. Every plate and gasket is dimensionally checked and pressure-tested before dispatch, giving plant engineers and procurement teams a reliable, drop-in alternative to OEM lead times.

SRJ manufactures replacement plates and gaskets compatible with Thermaline plate heat exchangers, pressed on tooling matched to original port position, plate corrugation, and gasket groove geometry across the T-series range (including T13, T28, T28CH, and other T-designated models). Because each plate replicates the original clamping dimension and port layout, it seats correctly on the carrying and guiding bars of your existing frame without requiring any modification to the frame or tightening bolts.

Thermaline designs its sanitary plate heat exchangers around specific channel geometries matched to the product being processed: deep channels for gentle handling of food products that also need easy cleanability, shallow channels for efficient utility and industrial-duty designs, and open channels with minimal contact points for media containing small particulates or fibres. Double-wall welded plates are also available for applications requiring added leak-detection protection between the two fluid circuits. SRJ's tooling reproduces these same channel-depth and pattern categories, so a replacement plate is matched not just dimensionally but functionally to the duty your original Thermaline plate was selected for - whether that's gentle dairy/beverage processing or a more standard utility heating/cooling duty.

Because Thermaline heat exchangers are designed and manufactured to comply with FDA and 3-A sanitary standards, plate surface finish, gasket seating, and cleanability are especially important considerations for replacement parts used in food and beverage service. SRJ manufactures plates with the corrugated depth (CDX-type) finish and dimensional tolerance needed to maintain this sanitary standard of fit, and gaskets are supplied in food-grade EPDM (clip-on) as standard, with other elastomer compounds available depending on your specific process media and cleaning-in-place (CIP) requirements.

Gaskets on Thermaline units are typically fitted using a clip-on system for fast, tool-free replacement during routine sanitation and maintenance cycles - a common requirement in food and beverage plants where downtime for cleaning and re-gasketing needs to be minimised. SRJ replicates this same clip-fit gasket design, so gasket replacement proceeds exactly as your maintenance team is accustomed to with genuine Thermaline parts.

SRJ's in-house Noida facility allows Thermaline-compatible plates and gaskets to be manufactured to order, supporting both current T-series installations and older Thermaline units where sourcing genuine US-manufactured OEM spares can mean longer import lead times and higher landed costs for plants outside North America. Every production batch is backed by our ISO 9001:2015 certified quality process - dimensional and flatness checks on plates, groove-fit verification on gaskets, and pressure testing of assembled plate packs on request - giving your procurement team a documented basis for approving non-OEM Thermaline-compatible parts.

Don't see your exact model listed? Send us your nameplate details or an existing plate sample - we manufacture to your specific Thermaline unit's dimensions, including older or discontinued models.
